HONEYWELL BAR CODE SCANNER

Genesis 7580 G

Area-Imaging Scanner

The Honeywell Genesis™ 7580g, the world’s first presentation
area-imaging scanner engineered to decode all standard 1D, PDF,
and 2D codes, provides enhanced productivity and revolutionary
imaging technology in an elegant, yet durable design.
Powered by Adaptus™ imaging technology, the Genesis 7580g
scanner redefines industry standards for imaging solutions.
Breakthrough performance and a versatile form factor make this
product suitable for environments ranging from manufacturing
to healthcare to retail POS. Aggressive reading of barcodes
on highly reflective surfaces, such as mobile phone screens,
eliminates the need to purchase additional specialty hardware.
Patented CodeGate™ technology along with an activation button
support menu-scanning and other targeted-scanning applications.
Automatic cable detection and configuration simplifies migration
to a new interface by eliminating the need to scan programming
barcodes.

Product Features

Mecanical
Dimensions (L x W x H): 80 mm x 83 mm x 150 mm
(3.2 in x 3.3 in x 5.9 in)
Weight: 340 g (12 oz)
Electrical
Input Voltage: 5.5V DC ±0.25V
Operating Power: 2.0 W (400 mA @ 5V)
Standby Power: 0.5 W (100 mA @ 5V)
Host System Interfaces: USB, RS-232, Keyboard
Wedge, IBM 46xx (RS-485)
Auxiliary Ports: EAS with interlock (EAS model)
Environmental
Operating Temperature: 0°C to 40°C
(32°F to 104°F)
Storage Temperature: -40°C to 60°C
(-40°F to 140°F)
Humidity: 0% to 95% relative humidity,
non-condensing
Drop: Designed to withstand 1.5 m (5 ft) drops
Environmental Sealing: Sealed to resist airborne
particulate contaminants
Light Levels: 100,000 Lux
Scan Performance
Scan Pattern: Area Image (832 x 504 pixel array)
Motion Tolerance: 200 cm/s (78 in/s) for 13 mil
UPC at optimal focus
Scan Angle: Horizontal: 46°; Vertical: 28°
Print Contrast: 20% minimum
reflectance difference
Pitch, Skew: 70°, 75°
Decode Capability: Reads standard 1D, PDF,
2D, Postal, and OCR symbologies. Note: Decode
capabilities dependent on kit configuration.

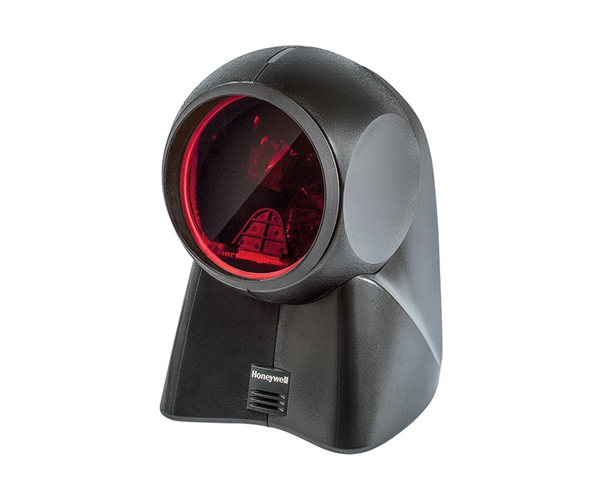

Orbit 7190 G

Hybrid Presentation Scanner

The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner.
Like other Orbit scanners – the best-selling hands-free scanners of all time – the Orbit 7190g scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. The award-winning shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.

Product Features

Mecinical
Dimensions (L x W x H): 108 mm x 103 mm x 148 mm
(4.3 in x 4.1 in x 5.8 in)
Weight: 410 g (14.5 oz)
Electrical
Input Voltage: 5 VDC ±0.25 V
Operating Power: 472 mA @ 5 V
Standby Power: 255 mA @ 5 V
Host System Interfaces: USB, RS-232,
Keyboard Wedge, IBM468xx (RS485)
EAS Features: EAS with interlock and
integrated RF EAS antenna (EAS model)
Environmental
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 5% to 95% relative humidity,
non-condensing
Drop: Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing: Sealed to resist
airborne particulate contaminants
Light Levels
Laser: 4842 Lux
Imager: 100000 Lux
Scan Performance
Scan Pattern: Hybrid, Omnidirectional Laser
(5 fields of 4 parallel lines) and Area Imager
(640 x 480 pixel array)
Scan Speed
Omnidirectional: 1120 scan lines per second
FPS: 30
Scan Angle (Imager)
Horizontal: 40.0°
Vertical: 30.5°
Symbol Contrast: 35% minimum reflectance difference

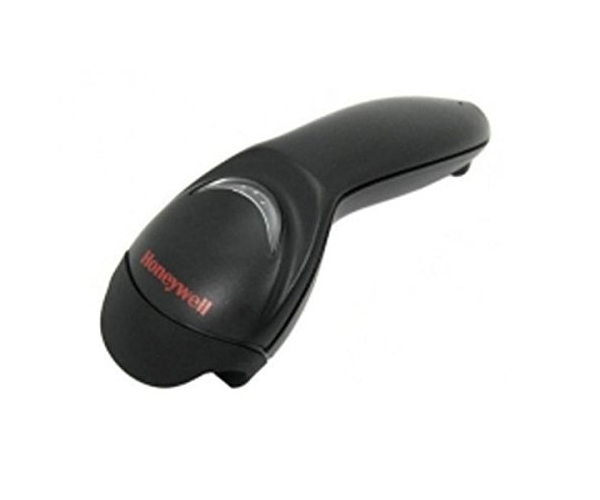

Honeywell Eclipse 5145 1-D Scanner |Barcode Readers|Image Readers

Einlinien-Laserscanner

Honeywell’s EclipseTM 5145 is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.
Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control. With Honeywell’s state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.

Product Features

CodeGate
Zero in on desired code and complete datatransmission with the push of a single button—ideal for menu scanning applications
CodeSense
Automatically wakes scanner from sleep mode when a bar code is detected
Powerlink Cables
Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®
Flash ROM
Protects POS investment with free firmware updates via MetroSet2 software and standard PC
